Easy mounting on different tractors with different diameter tyres.
Extend lower linkage mountings without the need for tools
Always the ideal setting for the PTO shaft overlap
Lower linkage arm provides freedom of movement between tractor and power harrow
Customer benefits
Technology
Technical data
| LION 253 CLASSIC | LION 303.12 CLASSIC | ||||
|---|---|---|---|---|---|
| Working width | 8'2'' (2,5 m) | 9'10'' (3 m) | |||
| Rotor | 8 pcs. | 12 pcs. | |||
| PTO speed | 1000 rpm | 1000 rpm | |||
| Rotor speed | 342 rpm | 342 rpm | |||
| Tine dimensions | 0'1'' x 1'1'' (18 x 340 mm) | 0'1'' x 1'1'' (15 x 330 mm) | |||
| Power requirement | 75 - 140 hp | 90 - 140 hp | |||
| Transport width | 8'2'' (2,5 m) | 9'10'' (3 m) | |||
| Weight of basic version | 2002 lbs (908 kg) | 2227 lbs (1010 kg) | |||
| Weight cage roller Ø 420 mm | 326 lbs (148 kg) | 430 lbs (195 kg) | |||
| Weight cage roller Ø 540 mm | - | 717 lbs (325 kg) | |||
| Weight toothed packer roller Ø 420 mm | 732 lbs (332 kg) | 805 lbs (365 kg) | |||
| Weight toothed packer roller Ø 500 mm | 970 lbs (440 kg) | 1157 lbs (525 kg) | |||
| Weight toothed packer roller Ø 550 mm | - | 1206 lbs (547 kg) | |||
| Weight toothed packer roller Ø 500 mm coated | 977 lbs (443 kg) | 1164 lbs (528 kg) | |||
| Weight toothed packer roller Ø 550 mm coated | - | 1230 lbs (558 kg) | |||
| Weight crumbling packer roller Ø 525 mm coated | - | 1146 lbs (520 kg) | |||
| Weight pack ring roller Ø 550 mm coated | 1087 lbs (493 kg) | 1213 lbs (550 kg) | |||
| Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing | - | 1235 lbs (560 kg) | |||
| Weight prism packer roller Ø 600 mm coated; 12,5 cm row spacing | - | - | |||
| Weight prism packer roller Ø 500 mm coated; 15 cm row spacing | - | 1168 lbs (530 kg) | |||
| Weight prism packer roller Ø 600 mm coated; 15 cm row spacing | - | - | |||
| Weight rubber packer roller Ø 585 mm coated | - | 1268 lbs (575 kg) |
LION 253 CLASSIC
| Working width | 8'2'' (2,5 m) |
| Rotor | 8 pcs. |
| PTO speed | 1000 rpm |
| Rotor speed | 342 rpm |
| Tine dimensions | 0'1'' x 1'1'' (18 x 340 mm) |
| Power requirement | 75 - 140 hp |
| Transport width | 8'2'' (2,5 m) |
| Weight of basic version | 2002 lbs (908 kg) |
| Weight cage roller Ø 420 mm | 326 lbs (148 kg) |
| Weight cage roller Ø 540 mm | - |
| Weight toothed packer roller Ø 420 mm | 732 lbs (332 kg) |
| Weight toothed packer roller Ø 500 mm | 970 lbs (440 kg) |
| Weight toothed packer roller Ø 550 mm | - |
| Weight toothed packer roller Ø 500 mm coated | 977 lbs (443 kg) |
| Weight toothed packer roller Ø 550 mm coated | - |
| Weight crumbling packer roller Ø 525 mm coated | - |
| Weight pack ring roller Ø 550 mm coated | 1087 lbs (493 kg) |
| Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing | - |
| Weight prism packer roller Ø 600 mm coated; 12,5 cm row spacing | - |
| Weight prism packer roller Ø 500 mm coated; 15 cm row spacing | - |
| Weight prism packer roller Ø 600 mm coated; 15 cm row spacing | - |
| Weight rubber packer roller Ø 585 mm coated | - |

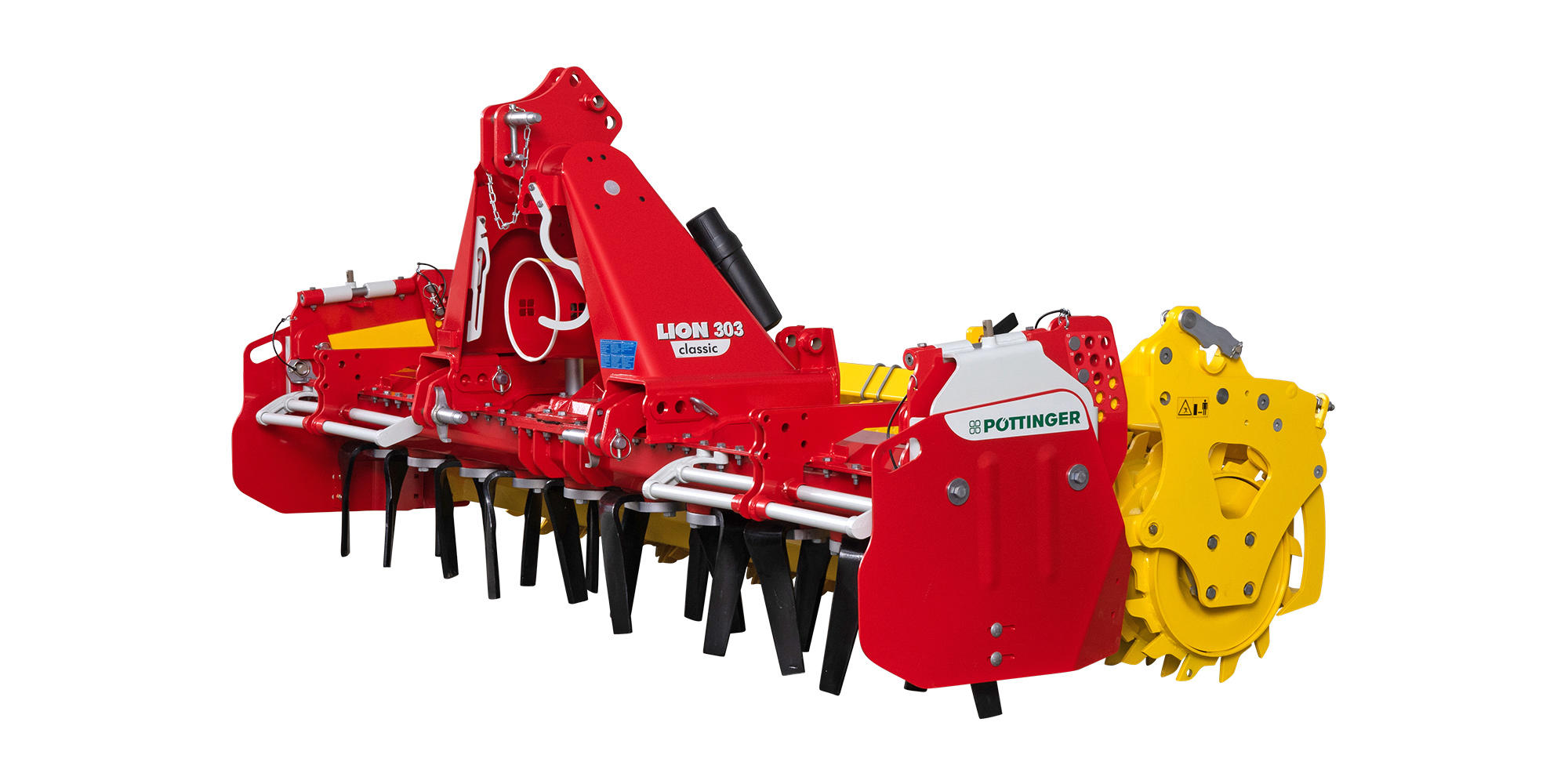

LION 303.12 CLASSIC
| Working width | 9'10'' (3 m) |
| Rotor | 12 pcs. |
| PTO speed | 1000 rpm |
| Rotor speed | 342 rpm |
| Tine dimensions | 0'1'' x 1'1'' (15 x 330 mm) |
| Power requirement | 90 - 140 hp |
| Transport width | 9'10'' (3 m) |
| Weight of basic version | 2227 lbs (1010 kg) |
| Weight cage roller Ø 420 mm | 430 lbs (195 kg) |
| Weight cage roller Ø 540 mm | 717 lbs (325 kg) |
| Weight toothed packer roller Ø 420 mm | 805 lbs (365 kg) |
| Weight toothed packer roller Ø 500 mm | 1157 lbs (525 kg) |
| Weight toothed packer roller Ø 550 mm | 1206 lbs (547 kg) |
| Weight toothed packer roller Ø 500 mm coated | 1164 lbs (528 kg) |
| Weight toothed packer roller Ø 550 mm coated | 1230 lbs (558 kg) |
| Weight crumbling packer roller Ø 525 mm coated | 1146 lbs (520 kg) |
| Weight pack ring roller Ø 550 mm coated | 1213 lbs (550 kg) |
| Weight prism packer roller Ø 500 mm coated; 12,5 cm row spacing | 1235 lbs (560 kg) |
| Weight prism packer roller Ø 600 mm coated; 12,5 cm row spacing | - |
| Weight prism packer roller Ø 500 mm coated; 15 cm row spacing | 1168 lbs (530 kg) |
| Weight prism packer roller Ø 600 mm coated; 15 cm row spacing | - |
| Weight rubber packer roller Ø 585 mm coated | 1268 lbs (575 kg) |
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
