Technical data
| TERRASEM V 4000 D | TERRASEM V 6000 D | TERRASEM V 8000 D | TERRASEM V 9000 D | ||
|---|---|---|---|---|---|
| Working width | 13'1'' (4 m) | 19'8'' (6 m) | 26'3'' (8 m) | 29'6'' (9 m) | |
| Transport width | 9'10'' (3 m) | 9'10'' (3 m) | 9'10'' (3 m) | 9'10'' (3 m) | |
| Transport height | 8'9'' (2,66 m) | 9'10'' (3 m) | 13'1'' (3,98 m) | 14'7'' (4,45 m) | |
| Power requirement | 140 - 200 hp | 190 - 300 hp | 280 - 400 hp | 300 - 400 hp | |
| Row spacing | 12,5 16,7 (12,5 16,7 cm) | 12,5 16,7 (12,5 16,7 cm) | 12,5 16,7 (12,5 16,7 cm) | 12,5 16,7 (12,5 16,7 cm) | |
| Number of rows | 32 24 pcs. | 48 36 pcs. | 64 48 pcs. | 72 54 pcs. | |
| Coulter disc diameter | 1'3'' (380 mm) | 1'3'' (380 mm) | 1'3'' (380 mm) | 1'3'' (380 mm) | |
| Coulter spacing (Front to rear) | 1'1'' (32 cm) | 1'1'' (32 cm) | 1'1'' (32 cm) | 1'1'' (32 cm) | |
| Coulter pressure (Maximum) | 40 - 120 kg | 40 - 120 kg | 40 - 120 kg | 40 - 120 kg | |
| Press wheel diameter | 1'3'' (380 mm) | 1'3'' (380 mm) | 1'3'' (380 mm) | 1'3'' (380 mm) | |
| Seed hopper volume | 3600 l | 3600 l | 5600 l | 5600 l | |
| No. of centre press wheels | 8 pcs. | 12 pcs. | 16 pcs. | 18 pcs. | |
| Metering wheel drive | Electrical | Electrical | Electrical | Electrical | |
| Oil flowrate for fan drive | 30 l | 30 l | 50 l | 50 l |
TERRASEM V 4000 D
| Working width | 13'1'' (4 m) |
| Transport width | 9'10'' (3 m) |
| Transport height | 8'9'' (2,66 m) |
| Power requirement | 140 - 200 hp |
| Row spacing | 12,5 16,7 (12,5 16,7 cm) |
| Number of rows | 32 24 pcs. |
| Coulter disc diameter | 1'3'' (380 mm) |
| Coulter spacing (Front to rear) | 1'1'' (32 cm) |
| Coulter pressure (Maximum) | 40 - 120 kg |
| Press wheel diameter | 1'3'' (380 mm) |
| Seed hopper volume | 3600 l |
| No. of centre press wheels | 8 pcs. |
| Metering wheel drive | Electrical |
| Oil flowrate for fan drive | 30 l |
TERRASEM V 6000 D
| Working width | 19'8'' (6 m) |
| Transport width | 9'10'' (3 m) |
| Transport height | 9'10'' (3 m) |
| Power requirement | 190 - 300 hp |
| Row spacing | 12,5 16,7 (12,5 16,7 cm) |
| Number of rows | 48 36 pcs. |
| Coulter disc diameter | 1'3'' (380 mm) |
| Coulter spacing (Front to rear) | 1'1'' (32 cm) |
| Coulter pressure (Maximum) | 40 - 120 kg |
| Press wheel diameter | 1'3'' (380 mm) |
| Seed hopper volume | 3600 l |
| No. of centre press wheels | 12 pcs. |
| Metering wheel drive | Electrical |
| Oil flowrate for fan drive | 30 l |
TERRASEM V 8000 D
| Working width | 26'3'' (8 m) |
| Transport width | 9'10'' (3 m) |
| Transport height | 13'1'' (3,98 m) |
| Power requirement | 280 - 400 hp |
| Row spacing | 12,5 16,7 (12,5 16,7 cm) |
| Number of rows | 64 48 pcs. |
| Coulter disc diameter | 1'3'' (380 mm) |
| Coulter spacing (Front to rear) | 1'1'' (32 cm) |
| Coulter pressure (Maximum) | 40 - 120 kg |
| Press wheel diameter | 1'3'' (380 mm) |
| Seed hopper volume | 5600 l |
| No. of centre press wheels | 16 pcs. |
| Metering wheel drive | Electrical |
| Oil flowrate for fan drive | 50 l |
TERRASEM V 9000 D
| Working width | 29'6'' (9 m) |
| Transport width | 9'10'' (3 m) |
| Transport height | 14'7'' (4,45 m) |
| Power requirement | 300 - 400 hp |
| Row spacing | 12,5 16,7 (12,5 16,7 cm) |
| Number of rows | 72 54 pcs. |
| Coulter disc diameter | 1'3'' (380 mm) |
| Coulter spacing (Front to rear) | 1'1'' (32 cm) |
| Coulter pressure (Maximum) | 40 - 120 kg |
| Press wheel diameter | 1'3'' (380 mm) |
| Seed hopper volume | 5600 l |
| No. of centre press wheels | 18 pcs. |
| Metering wheel drive | Electrical |
| Oil flowrate for fan drive | 50 l |
TRAMLINE ASSIST
To set up the optimal tramline system, you need to synchronise your machinery. TRAMLINE ASSIST helps you to do this. When choosing your seed drill, parameters such as the working width of your crop care machines, track and tyre widths are critical for optimising tramlining. TRAMLINE ASSIST identifies the tramline rhythm for you, the position of the tramline rows, and the number of rows that need to be switched off.
www.mypoettinger.com/tramline-assist

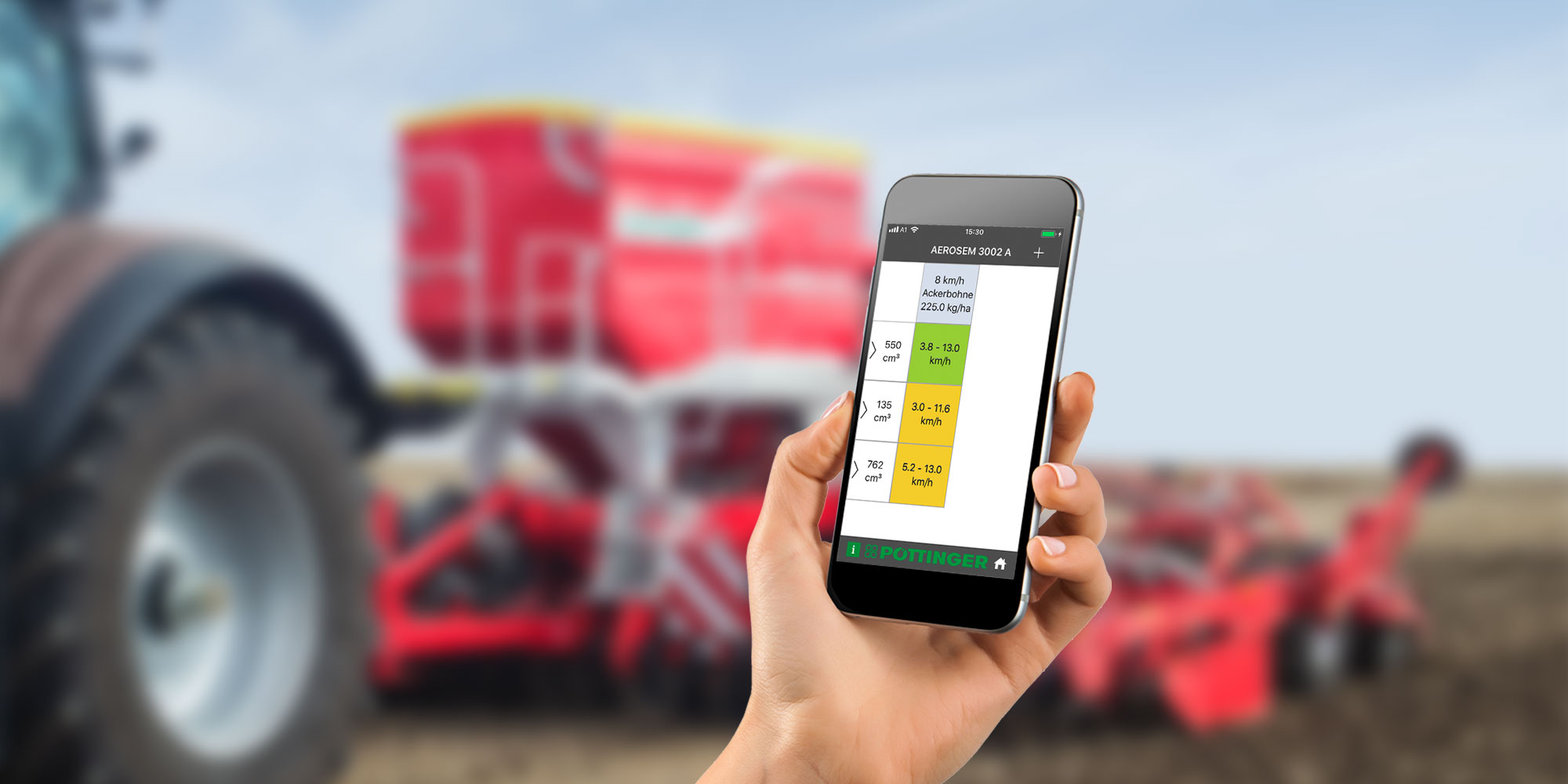

METERING WHEEL ASSIST
Choose the right metering wheel for your seed material simply by using PÖTSEM on your smartphone, tablet or PC. Get the new app from the App Store now (for iOS operating systems).
To the PÖTSEM app: https://www.poettinger.at/poetsem/#/
To the iOS app: https://itunes.apple.com/de/app/p%C3%B6tsem/id1434048370?mt=8
MyPÖTTINGER
- Get valuable information and tips on all PÖTTINGER machines
- Specific information on your PÖTTINGER machines in "My Machines".
- Instruction manuals, spare parts lists, maintenance information, as well as all technical details available online
- Machine-specific documentation for all PÖTTINGER machines built from 1997 onwards available online
www.mypoettinger.com
Videos
TERRASEM trailed mulch seed drills, your advantages
Brochures
Image gallery
Quality
We manufacture our products using the very latest flexible industrial methods in several locations. Everything we do is delivered to the highest possible quality.
Here, we test our products as to their suitability in field conditions in order to pass on only the very best to our customers. The testing centre is one of the most modern in agriculture worldwide and has an excellent reputation. Many other internationally-recognised manufacturers have their products tested here.
Our customers expect our machines to operate faultlessly and be completely reliable. To achieve this, we apply the highest quality standards applicable to the manufacture of agricultural machines - our own. The whole production process is monitored by our internal quality management team.
Our coating processes involve the most environmentally-friendly painting methods. Powder-coated paintwork has proven to be flexible and durable in the field. This ensures that our machines retain their value even after years of hard service.
